The Importance of Adhering to ASTM & ISO Standards
When producing test specimens for material evaluation, strict adherence to ASTM and ISO standards is essential to ensure accurate, repeatable, and certifiable results. Standards such as ASTM D638, ASTM D790, ASTM D256, ASTM D695, ASTM D648, ASTM D6110, ASTM D955, ASTM D1525, ASTM D570and ISO 527, ISO 178, ISO 179, ISO 294, ISO 604, ISO 1133, ISO 75, ISO 20753 define precise dimensions, tolerances, and testing protocols that must be followed without exception. Choosing a mold supplier who understands these requirements is critical. Non-compliant molds can result in unusable specimens, failed audits, and invalid test data, leading to costly delays or product requalification.
Meeting these standards requires much more than some may think. It involves sourcing certified tool steels, maintaining extremely tight tolerances, and utilizing specialized tooling and equipment to ensure dimensional accuracy. Every element of the mold—from the layout of the cavities, to the runner configuration, location of ejector pins, gate dimensions, water line layout, to the surface finish—must be carefully engineered to meet the specifications laid out in the corresponding ASTM or ISO testing standard. Even small deviations can result in non-compliance, making expertise in this area a non-negotiable requirement when selecting a mold partner.
At Bound, we are well-versed in the intricacies of ISO and ASTM specimen tooling. Our team delivers molds that meet stringent compliance requirements for clients across multiple industries. From proper gating strategies to precision machining, we understand the critical role the tool plays in tensile, flexural, and impact testing accuracy. Bound is more than a mold builder—we’re a trusted partner in quality assurance, helping you meet international testing standards with confidence.
Texture and Surface Finish in Injection Molding
Overview
The surface finish of an injection-molded test specimen plays a critical role in the accuracy and reliability of material testing. In applications governed by standards like ASTM D638 and ISO 527, even the slightest surface variation can skew tensile, flexural, and impact test results. Achieving a consistent, high-quality surface finish is not just a visual or cosmetic concern—it is essential to producing uniform, certifiable test specimens.
Polish

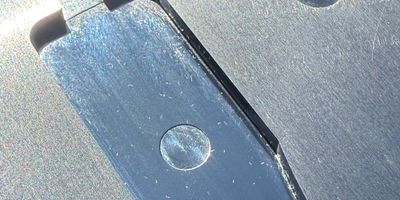

At Bound, we understand the importance of surface perfection. All of our test specimen molds are built with high-polish SPI A-3 as a standard, using trusted polishing partners who specialize in creating mirror-like finishes while ensuring flatness across the mold cavity. This attention to detail guarantees uniform wall thickness and dimensional consistency across every molded part. We also recognize that different surface finishes require careful material selection. Not all tool steels respond the same to polishing—our team will guide you in choosing the ideal grade to meet your surface finish goals without compromising mold life or durability.
Texture
In-Cavity Laser Engraving
In-Cavity Laser Engraving
For applications where certified mold textures are required—such as automotive testing, resin evaluation, or additive studies—Bound partners with industry-leading texture houses to deliver consistent, spec-compliant results. Whether you're testing how a polypropylene blend reacts to a fine leather grain or validating gloss retention on a textured ABS, we work directly with certified texture suppliers to integrate surface textures into your tool, ensuring proper gloss levels and reproducibility across production runs. This service can be built into your tooling quote, giving you a streamlined process from concept to production.
In-Cavity Laser Engraving
In-Cavity Laser Engraving
In-Cavity Laser Engraving
Additionally, Bound offers laser engraving for text, logos, or cavity identification directly onto tool steel. Unlike traditional milling methods, laser engraving provides sharper corners and more design flexibility, which not only enhances part presentation but allows for functional benefits like cavity-specific traceability or branding without additional downstream processing. Whether you're producing ISO- or ASTM-compliant specimens or specialized production parts, Bound delivers the quality and customization your project requires.
ISO Standards
Overview
The International Organization for Standardization (ISO) develops globally recognized standards to ensure quality, safety, and efficiency across various industries. In the context of injection molding, ISO standards provide precise guidelines for producing and testing plastic specimens, ensuring consistency and reliability in material evaluation. Adherence to these standards is crucial for manufacturers aiming to validate material properties, meet regulatory requirements, and maintain product integrity.
ISO 527 – Determination of Tensile Properties
This standard specifies methods for determining the tensile properties of plastics, including tensile strength, modulus of elasticity, and elongation at break. It is essential for assessing a material's behavior under tensile stress.
ISO 178 – Determination of Flexural Properties
ISO 178 outlines the procedure for measuring the flexural properties of rigid and semi-rigid plastics. It involves a three-point bending test to determine flexural strength and modulus.
ISO 179 – Determination of Charpy Impact Properties
This standard describes the method for assessing the impact resistance of plastics using the Charpy impact test. It measures the energy absorbed by a specimen during fracture.
ISO 604 – Determination of Compressive Properties
ISO 604 specifies a method for determining the compressive properties of plastics, including compressive strength and modulus. It is vital for applications where materials are subjected to compressive forces.
ISO 1133 – Determination of Melt Mass-Flow Rate (MFR) and Melt Volume-Flow Rate (MVR)
This standard provides procedures for measuring the flow rates of thermoplastic materials under specified conditions, which is crucial for understanding processing behavior.
ISO 75 – Determination of Temperature of Deflection Under Load
ISO 75 outlines the method for determining the temperature at which a plastic specimen deforms under a specified load, indicating its heat resistance.
ISO 20753 – Test Specimens for Plastics
This standard specifies the dimensions and types of test specimens used for various mechanical property tests, ensuring consistency across different testing methods.
ISO 294 – Injection Molding of Test Specimens of Thermoplastic Materials
ISO 294 provides guidelines for the preparation of test specimens through injection molding, detailing the molding conditions and specimen dimensions required for accurate testing.
ASTM Standards
Overview
ASTM International develops globally recognized standards that ensure quality, safety, and performance across various industries. In injection molding, ASTM standards provide precise guidelines for producing and testing plastic specimens, ensuring consistency and reliability in material evaluation. Adherence to these standards is crucial for manufacturers aiming to validate material properties, meet regulatory requirements, and maintain product integrity.
ASTM D638 – Tensile Properties of Plastics
This standard specifies methods for determining the tensile properties of plastics, including tensile strength, modulus of elasticity, and elongation at break. It is essential for assessing a material's behavior under tensile stress.
ASTM D790 – Flexural Properties of Unreinforced and Reinforced Plastics
ASTM D790 outlines procedures for measuring the flexural properties of plastics using a three-point bending test. It determines flexural strength and modulus, which are critical for applications involving bending loads.
ASTM D256 – Determining the Izod Pendulum Impact Resistance of Plastics
This standard describes the method for assessing the impact resistance of plastics using the Izod impact test. It measures the energy absorbed by a notched specimen during fracture, indicating the material's toughness.
ASTM D695 – Compressive Properties of Rigid Plastics
ASTM D695 specifies a method for determining the compressive properties of rigid plastics, including compressive strength and modulus. It is vital for applications where materials are subjected to compressive forces.
ASTM D648 – Deflection Temperature of Plastics Under Flexural Load
This standard covers the determination of the temperature at which a plastic specimen deforms under a specified load, indicating its heat resistance.
ASTM D6110 – Determining the Charpy Impact Resistance of Notched Specimens of Plastics
ASTM D6110 outlines the method for measuring the impact resistance of plastics using the Charpy impact test. It assesses the material's ability to withstand sudden impacts.
ASTM D955 – Measuring Shrinkage from Mold Dimensions of Thermoplastics
This standard provides procedures for measuring the shrinkage of thermoplastics from mold cavity dimensions to molded part dimensions, which is crucial for precision molding.
ASTM D1525 – Vicat Softening Temperature of Plastics
ASTM D1525 specifies a method for determining the temperature at which a plastic specimen softens under a specified load, indicating its heat-softening characteristics.
ASTM D570 – Water Absorption of Plastics
This standard covers the determination of the relative rate of water absorption by plastics when immersed, which affects dimensional stability and mechanical properties.
